Power Direct Heating Negative Temperature Coefficient Thermistor MF73 1/56
Product Description
High power type NTC suppresses the surge current at startup. Its zero power resistance value suppresses the surge current at the moment of startup so that the surge current at the moment of startup will not be too large.
Product Features
1. Application scope:Various high-power switching power supplies, UPS power supplies, conversion power supplies.
2.Features:
* Reliable structure and easy to install.
* Strong ability to suppress surge current and absorb large energy.
* The working steady-state current is large.
* Long life and high reliability.

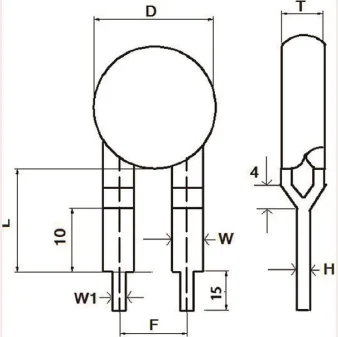

Dimension in mm
| Body size | φ40 | φ45 | φ50 |
| Dmax | 45 | 50 | 55 |
| Tmax | 18 | 18 | 18 |
| F±1.5 | 22.5 | 22.5 | 22.5 |
| L±2 | 20 | 20 | 20 |
| W±0.2 | 8 | 8 | 8 |
| H±0.1 | 1.0 | 1.0 | 1.0 |
| Body size | φ40 | φ45 | φ50 |
| Dmax | 45 | 50 | 55 |
| Tmax | 18 | 18 | 18 |
| | | | |
| F±1.5 | 22.5 | 22.5 | 22.5 |
| L±2 | 20 | 20 | 20 |
| W±0.2 | 8 | 8 | 8 |
| H±0.1 | 1.0 | 1.0 | 1.0 |
| W1±0.2 | 6 | 6 | 6 |
Specification
| Item No : | MF73 |
| Zero Power Resistance At 25℃ : | 0.2~25Ω |
| B Value At 25/50°C : | 2600~3200K |
| Max Steady Current : | 13~80A |
| Max Allowable Capacity Value : | 11500μF |
| Maximum Rated Power : | 36W |
Voice from our cooperated customers
Our advantages
* 20+ Years Industry Experience Founded in 2002. Four self-built factories.
* R&D team of more than 50 peopleProvide one-to-one customized service.
* Highly automated mass production lineHigh-quality and cost-effective solutions.
* Full range of self-developed products
* One-stop NTC customizable solutions.
The core component of all NTC temperature sensors, the high-performance temperature measuring NTC thermistor, is all produced in-house. It has a complete series and diverse structures, which can meet the precise temperature measurement in different temperature areas from low temperature to medium low temperature to medium and high temperature. These High-performance temperature measuring NTC thermistors have passed a series of safety certifications at home and abroad.

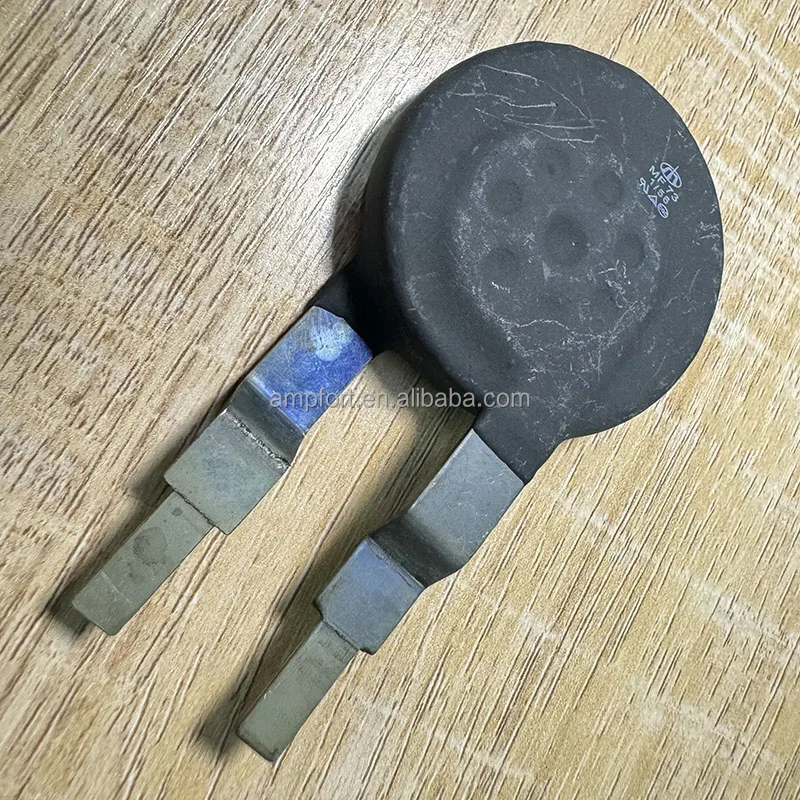

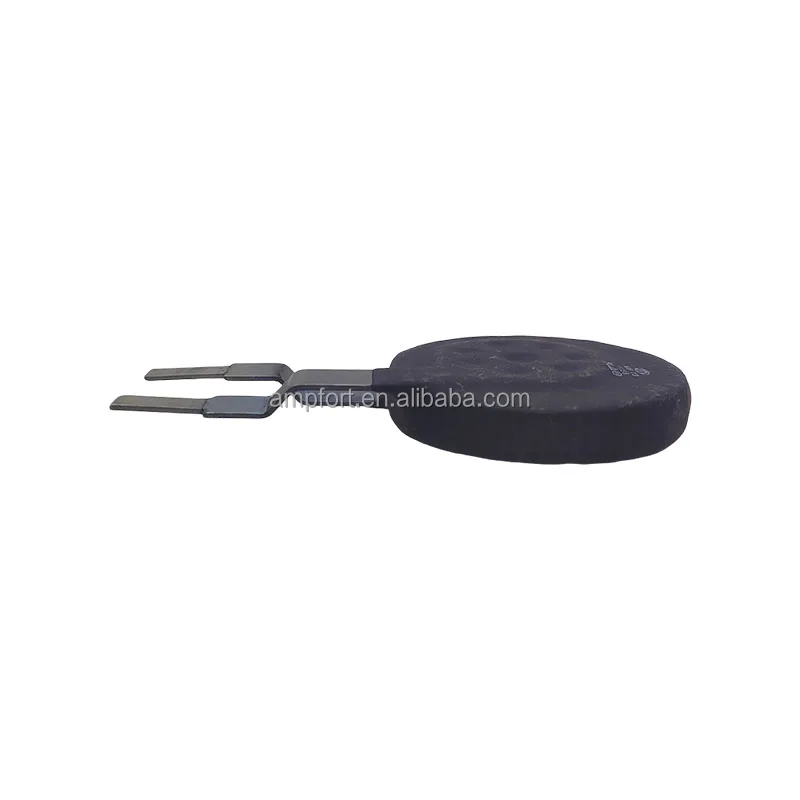

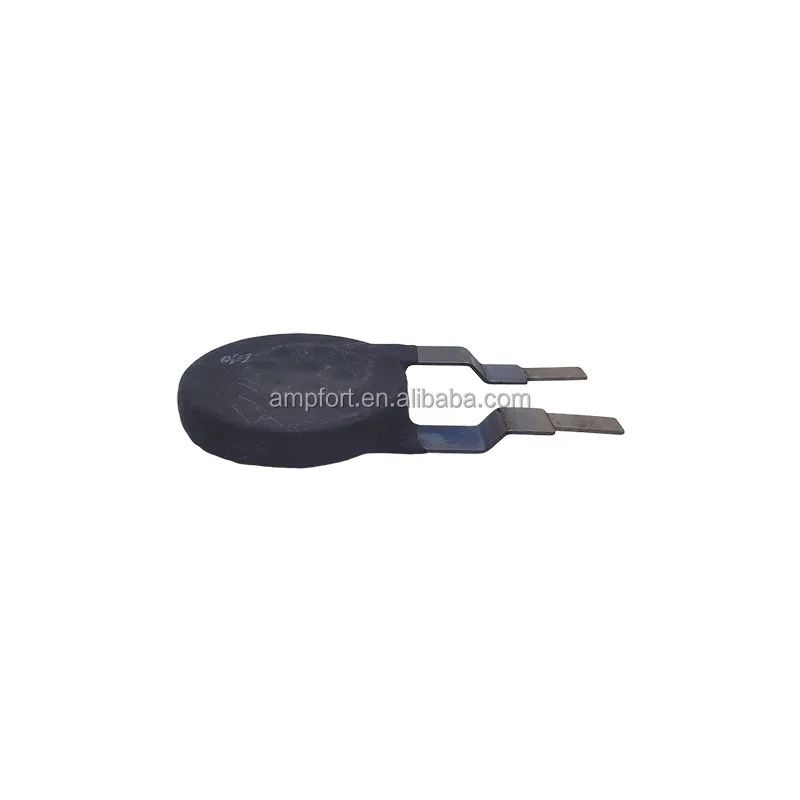

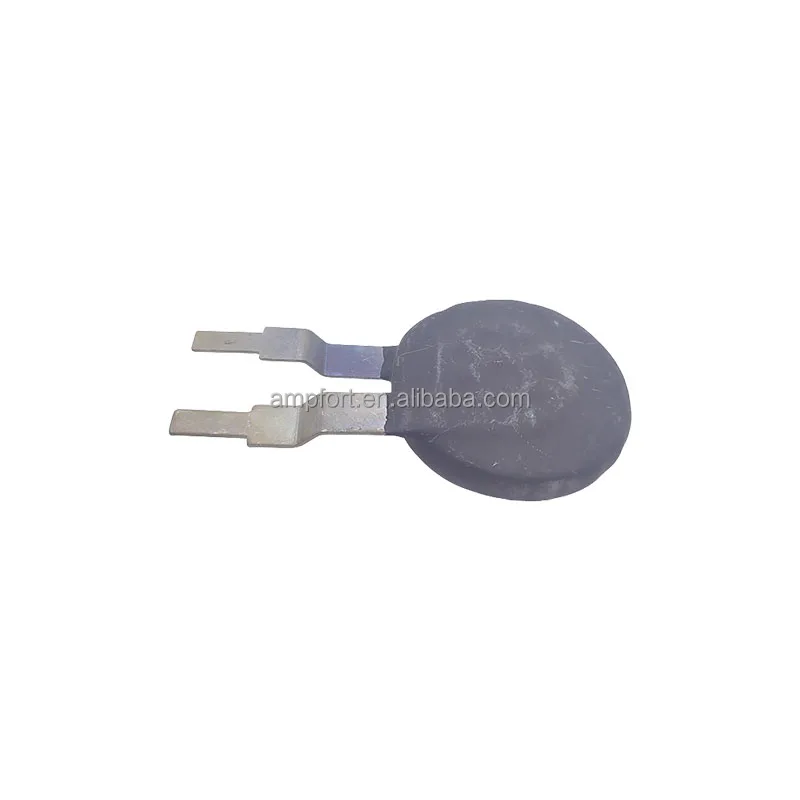

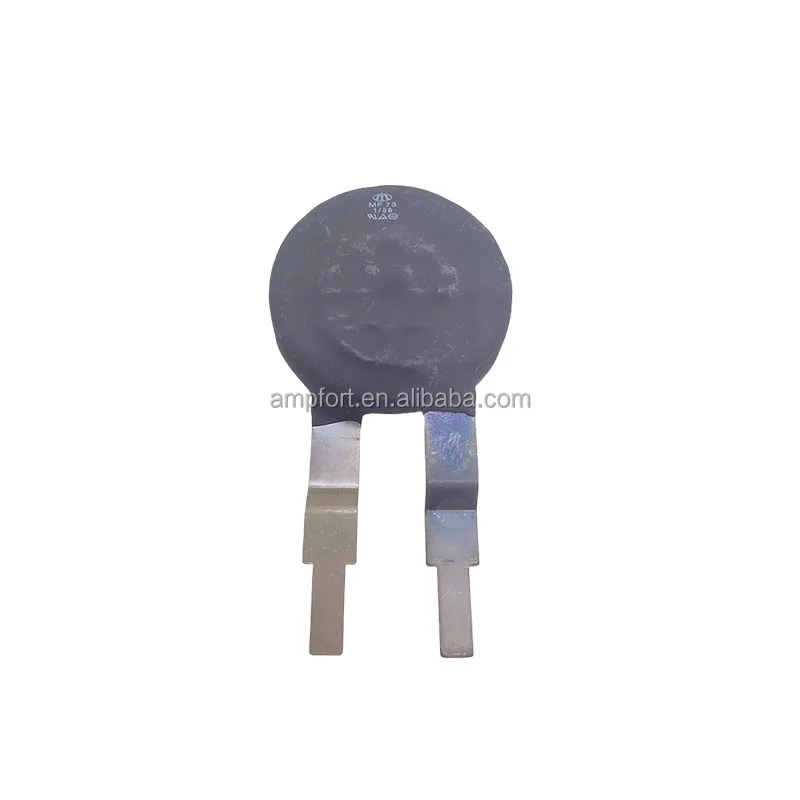

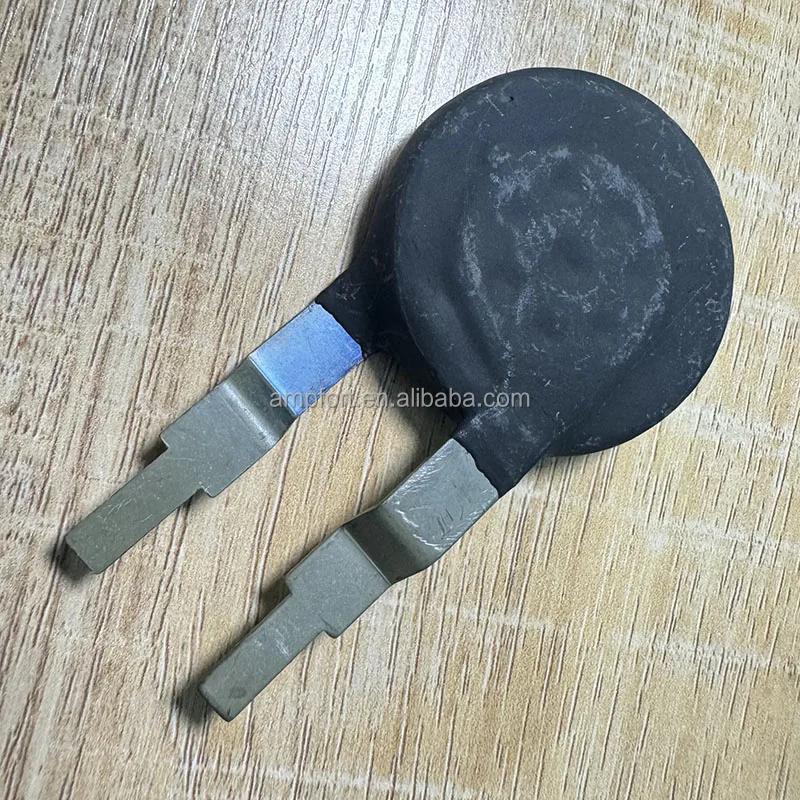

Actual product photos
