Customized Ceramic Fuse Clip Cartridge Fuse Holder With Adjustable Size
Description
A fuse clip is a type of open fuse holder or mount for fuses. Similar tofuse covers they are designed to create a tight grip between the clip and the fuse itself, and protect the fuse from the environment around it. They can be used as an alternative to fuse blocks in some cases.
Applications of fuse clips
The most common application of fuse clips is with automotive fuses. These are usually blade-type fuses, and once they are fitted into the fuse clip they may require a special tool for removal.
They are also more generally used on printed circuit boards, where they are mounted, and they can only be accessed from within the piece of equipment once installed.
Types of fuse clips
Fuse clips come in a variety of different styles, and generally vary depending on the type of fuse that they are intended to hold, and where it needs to be located. They differ by size, mounting style, and clip material.
Specification
| Name |
Fuse Clip |
| For fuse |
big size fuse |
| Customized |
Yes |
| Material |
Copper |
| Technical support |
Yes |
| MOQ |
Based on detailed design |

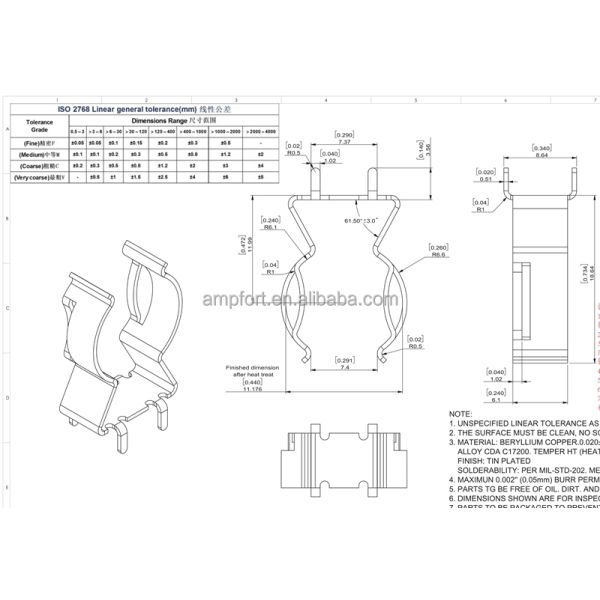

Drawing

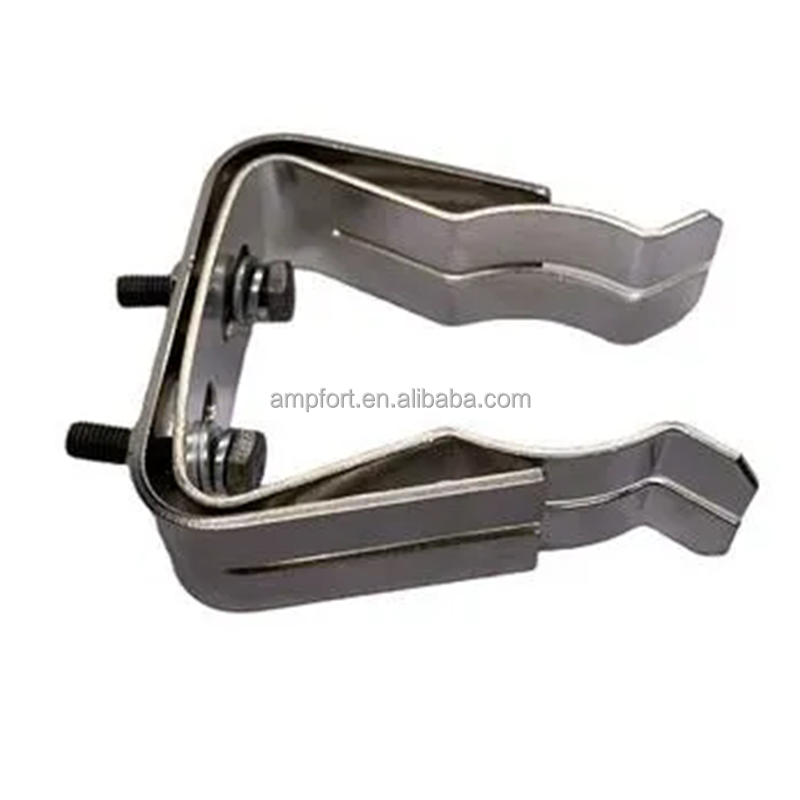

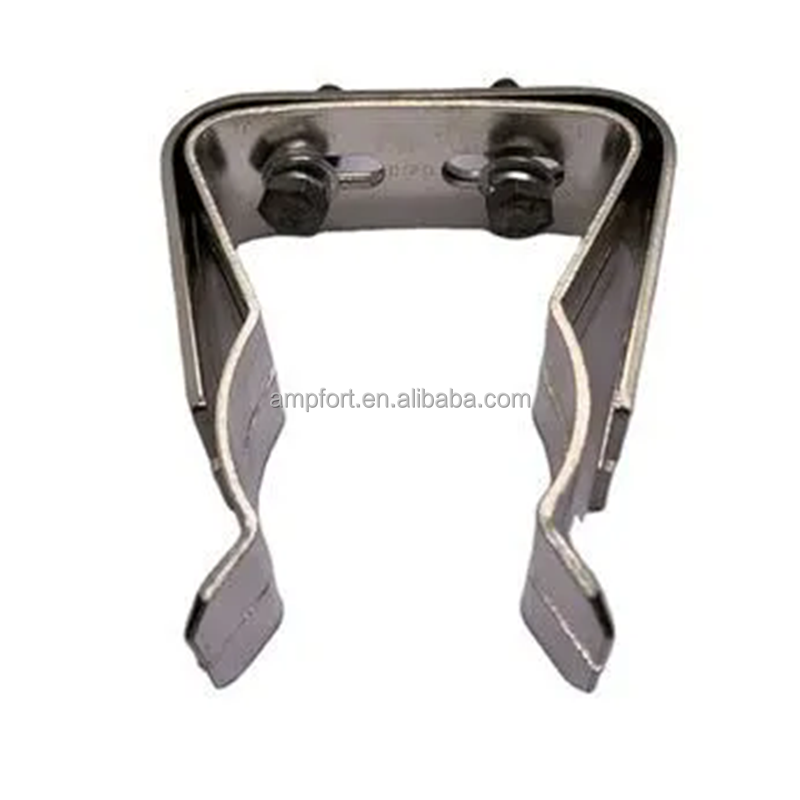

Photos
Applications
The fuse clip for ATM-N or MIN-N fuses features a P.C.B. mount design.
It is commonly used in:
Automotive electronic modules (such as control units and fuse boxes, including EV applications)
Industrial control circuit boards and power modules
Consumer electronics and household appliances to protect critical circuits
Employing fuse clips for cartridge fuses
Every electrical circuit has the potential for a damaging overcurrent or short circuit event. For this reason, many product standards are explicitly created to ensure product safety for the myriad of potential conditions it may be subjected to. The fuse is one of the most common devices to help protect electronic equipment and its users from the risk of electrical fire or shock due to these events, making it one of the most frequently employed solutions to obtain certification for these product and safety standards.
When it comes to electronic or printed circuit board (PCB) applications, cartridge fuses are a cost-effective option and typically have higher voltage and interrupting ratings when compared to other types of electronic or PCB fuses. Given these characteristics, they can help ease the fault current investigation required to meet safety standards. For example, a power supply design may include evaluating all possible ways a user may connect to a power source and the possible fault currents each of those sources may deliver.
